Product Overview

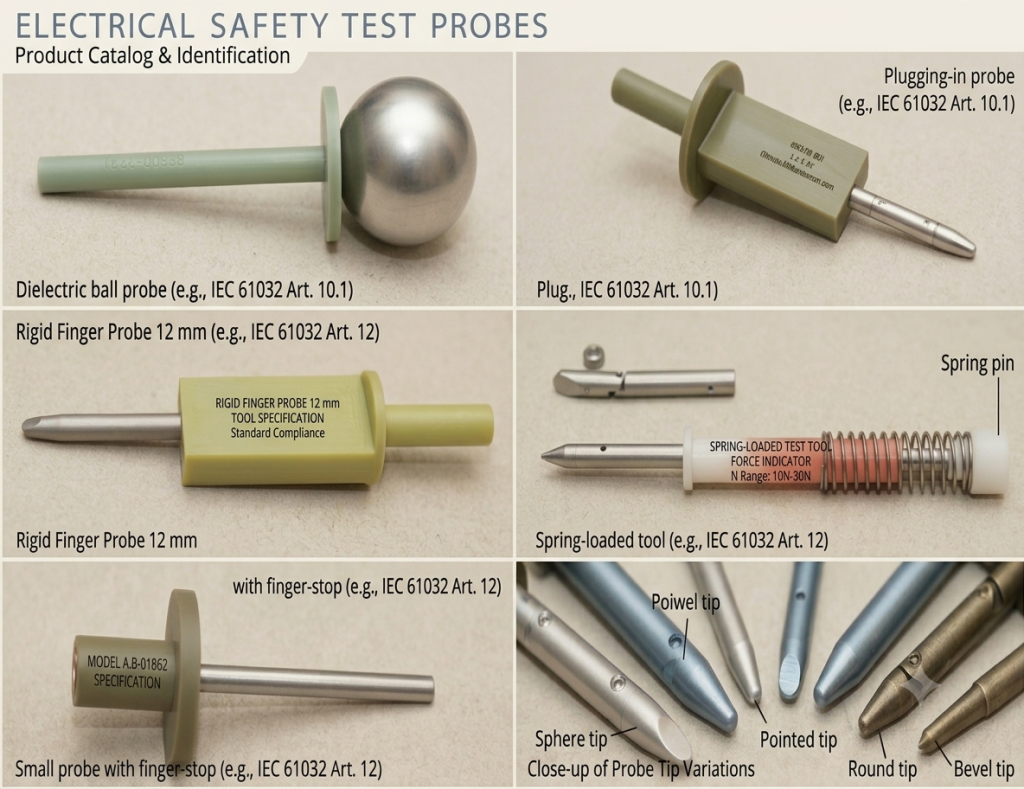

Unjointed Finger Probe
Designed for forceful insertion, the Unjointed Finger Probe is ideal for applications where the flexibility of a jointed probe would be a limitation. The handle features a threaded hole, allowing compatibility with force gauges for precise testing.
- Rigid construction for forceful insertion
- Threaded handle for use with force gauges
- Complies with relevant safety standards
Ball Accessibility Probe with Handle
The 50 mm Impact Ball with Handle is used for testing per IEC 60529, ensuring protection against access to hazardous parts. The ball is constructed from chrome-plated hardened steel, while the handle and stop face are made of polyamide for durability.
- 50 mm diameter impact ball
- Made from hardened steel with a polyamide handle
- Designed for IEC 60529 compliance
Test Pin Probe (15 mm Long)
The Test Pin Probe is designed to assess the accessibility of small objects in compliance with IEC, CSA, and UL standards. It is made of stainless steel with an insulated handle, ensuring precision and safety. This probe meets IEC 60950 and IEC 61032 standards.
- 15 mm length for small object testing
- Stainless steel construction with an insulated handle
- Compliant with IEC 60950 and 61032 standards
Test Rod Probes
All models feature a 35 mm diameter ball and are designed to measure protection against access to hazardous parts. The rod is made from stainless steel, while the stop face and handle are made of polyamide. The handle is threaded for compatibility with force gauges.
- 35 mm diameter ball
- Stainless steel rod with a polyamide handle
- Threaded handle for force gauge attachment
Unregulated Power Source
This unregulated power source features a current limiting circuit, a digital voltmeter, and a fault indicator. It is designed for use with various test probes to meet standardized test requirements.
