Product Overview
The Water Immersion Test Chamber is designed to evaluate the resistance of electrical products, components, enclosures, and other test specimens to water ingress under controlled immersion conditions. It is suitable for laboratory testing, product development, quality control, and verification of enclosure protection against water penetration.

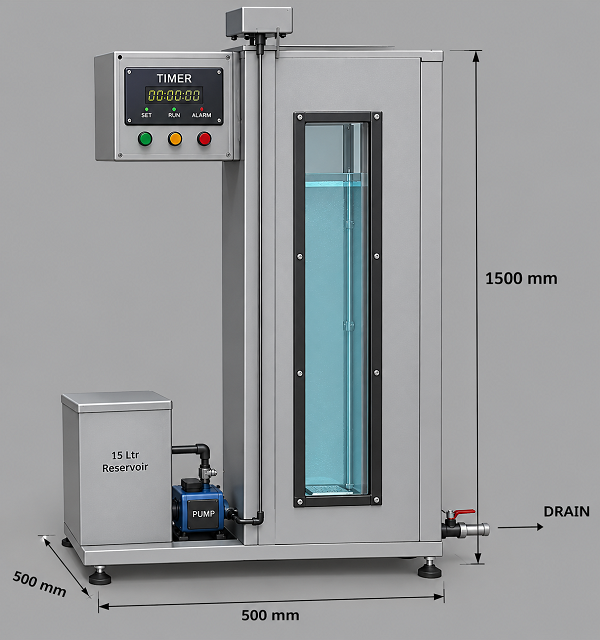

The system features a vertical stainless-steel tank with internal dimensions of 500 × 500 × 1500 mm (W × D × H), providing adequate space for immersing suitable test specimens. A viewing window allows visual observation of the test specimen during immersion. The equipment incorporates a timer-based control panel for setting and monitoring the test duration.
A dedicated water reservoir and pump assembly supports water circulation or filling as required by the test procedure. A drain outlet with a valve facilitates convenient emptying of the chamber after testing. The system is mounted on a sturdy frame with adjustable supporting feet.
Salient Features
Vertical water immersion tank with 500 × 500 × 1500 mm dimensions.
Robust industrial construction suitable for laboratory use.
Transparent viewing window for observation of the specimen.
Timer-based control panel for preset test duration.
Water reservoir and pump assembly.
Drain outlet with valve for controlled water discharge.
Sturdy supporting frame with adjustable feet.
Suitable for electrical product testing, inspection, and quality assurance.
Customisation available to meet specific specimen dimensions and test requirements.
Typical Applications
Electrical enclosures and equipment housings.
Electrical accessories and components.
Industrial products requiring water immersion evaluation.
Product development and quality-control laboratories.
Verification of water resistance under specified test conditions.
Technical Specifications
Parameter
Specification
Equipment
Water Immersion Test Chamber
Tank dimensions
500 × 500 × 1500 mm
Tank orientation
Vertical
Control system
Timer-based control panel
Water handling
Reservoir and pump assembly
Drainage
Drain outlet with valve
Mounting
Sturdy frame with adjustable feet
Construction
Industrial-grade construction; material as specified
Customisation
Available on request
Applicable Standards
The equipment may be configured for applicable water immersion and ingress-protection test procedures under relevant standards, including IEC 60529 (IP Code), where the specified test method and equipment configuration are suitable.
The applicable IP rating, immersion depth, duration, water conditions, and other test parameters must be selected according to the relevant product standard. This chamber should not be considered suitable for every IPX7 or IPX8 test without verification of the required test conditions.
Sensors India LLP designs and manufactures testing equipment for electrical safety, product performance, and quality assurance laboratories. Customised solutions can be developed according to customer specifications and applicable testing requirements.
