Product Overview

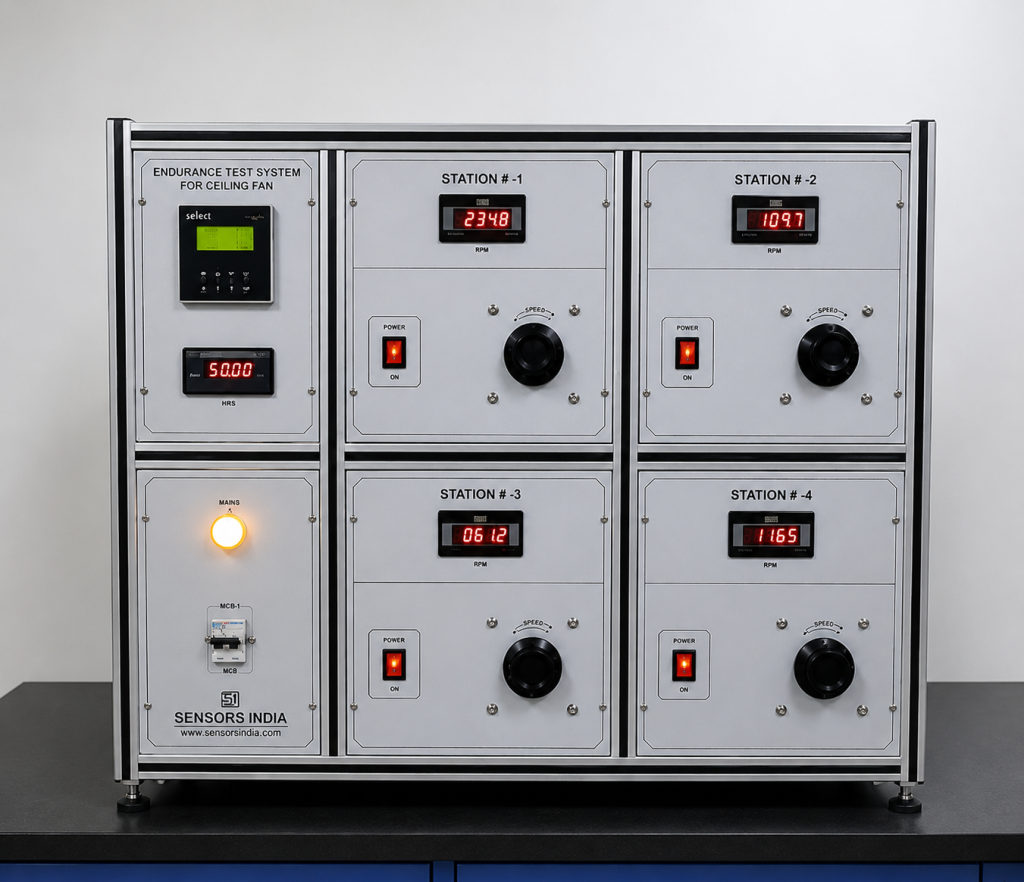

The Ceiling Fan Endurance Test Bench is designed for simultaneous endurance testing of four ceiling fans in accordance with the applicable requirements of IS 374.
The system provides independent test stations for each fan and is programmed to operate the fans through a repeated start–run–stop–pause–restart cycle. During the test, each fan is started and brought to its specified/full operating speed, operated for the programmed period, stopped, allowed to remain in the prescribed pause condition, and then automatically restarted.
The complete sequence is repeated continuously for the set endurance duration/cycle count, as required by the applicable test procedure. The system provides individual station controls and RPM indication for monitoring the operating speed of each fan.
Key Features
- 4 independent ceiling fan test stations
- Simultaneous endurance testing of four fans
- Programmable test duration
- Automatic start, full-speed operation, stop, pause and restart sequence
- Individual RPM indication for each test station
- Independent ON/OFF control for each station
- Automatic continuation of the endurance cycle until the programmed test duration is completed
- Centralized control and clear status indication
- Robust fabricated enclosure suitable for laboratory and production test environments
The test bench is suitable for quality-control laboratories, ceiling fan manufacturers and certification/testing facilities requiring repetitive endurance testing of ceiling fans as per IS 374.
